1st sem., Single-family house
Project Proposal Phase

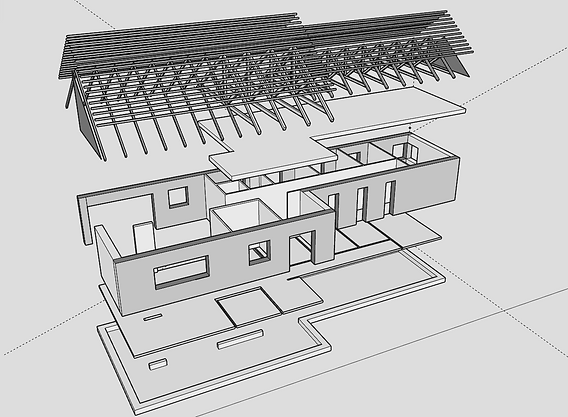

SketchUp exploded model

1st semester

During the first semester at the Architechtural Technology and Construction Management the project was a Single-family house with just one floor. As a person with no professional experience, it required a lot of research and understanding from me. Suddenly I was given a task of figuring out a whole building, which turned out to be quite a challenge. I focused on learning the basics, especially structural design, working in Revit and fulfilment of requirements, that I later on used during the next semesters.

26. AH11S24G8_K01_F1_H1_E1_N02 (furniture)_page-0001.jpg

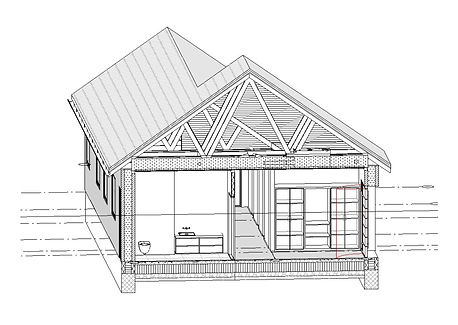

21. Perspective 2_page-0001.jpg
19. AH11S24G8_K01_F1_H1_EST (site plan trees)_page-0001 (1).jpg
1st sem., Single-family house
Project Proposal Phase

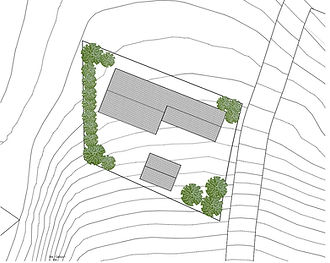

Section in a 3D model, Site Plan, Furnitured floorplan
1st sem., Single-family house
Outline Proposal Phase

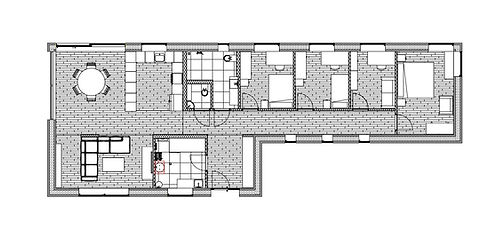

Furnitured floorplan, Perspective views (outside and inside)
10. Perspective outside_page-0001.jpg

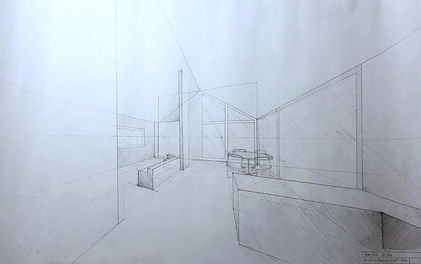

9. Perspective inside_page-0001.jpg

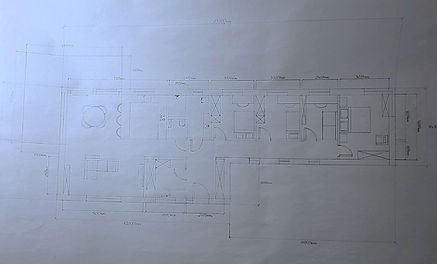

7. Floorplan_page-0001.jpg
1st sem., Single-family house
Project Proposal Phase

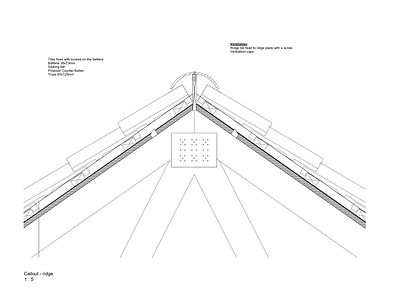

Roof at the ridge detail
1st sem., Single-family house
Project Proposal Phase

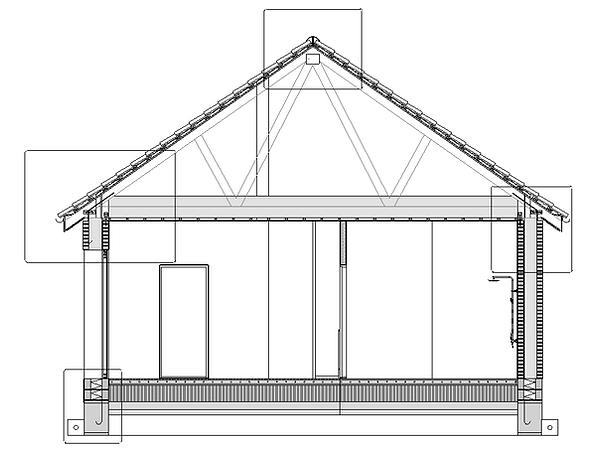

Section
1st sem., Single-family house
Outline Proposal Phase

Roof at the gable sketch
1- AH11_S24_G8_AH3_page-0001.jpg
1st sem., Single-family house
Project Proposal Phase

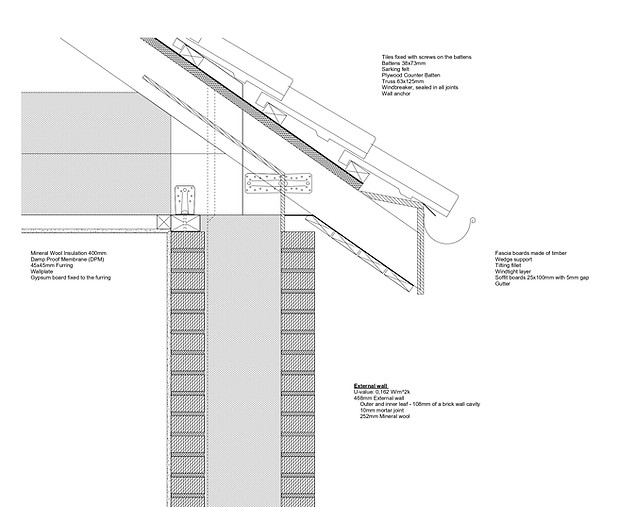

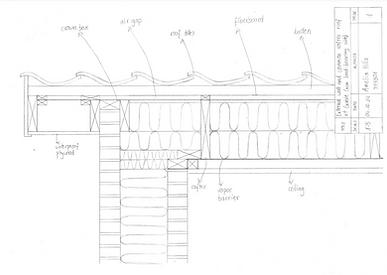

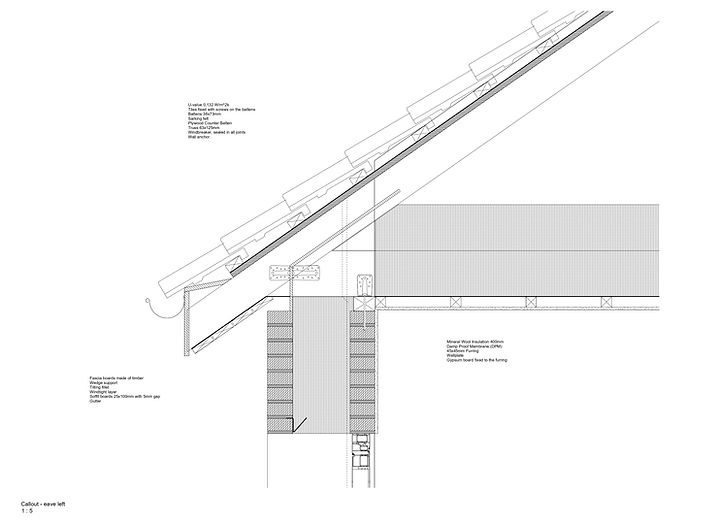

Roof at the eave detail
1st sem., Single-family house
Project Proposal Phase

Roof at the eave detail
1st sem., Single-family house
Project Proposal Phase

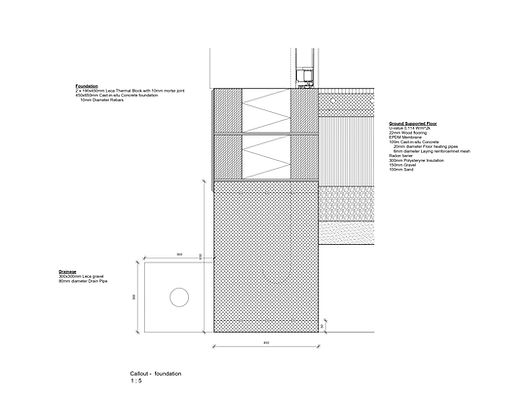

Ext. wall with a window with the foundation connection detail
1st sem., Single-family house
Outline Proposal Phase

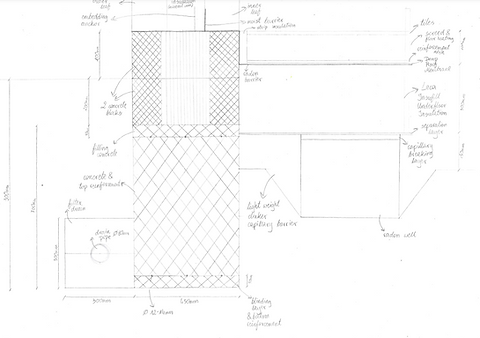

Ext. wall with the foundation connection  sketch
1st sem., Single-family house
Project Proposal Phase

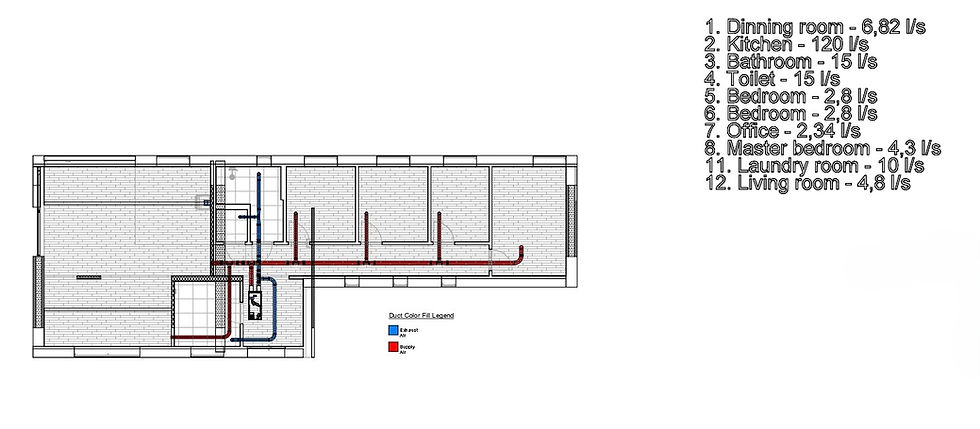

Ventilation Plan
1st sem., Single-family house
Project Proposal Phase

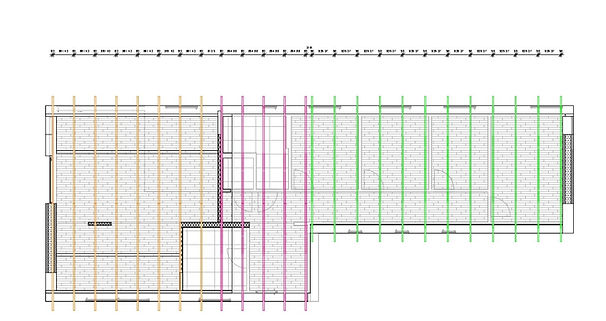

Truss Plan
1st sem., Single-family house
Project Proposal Phase

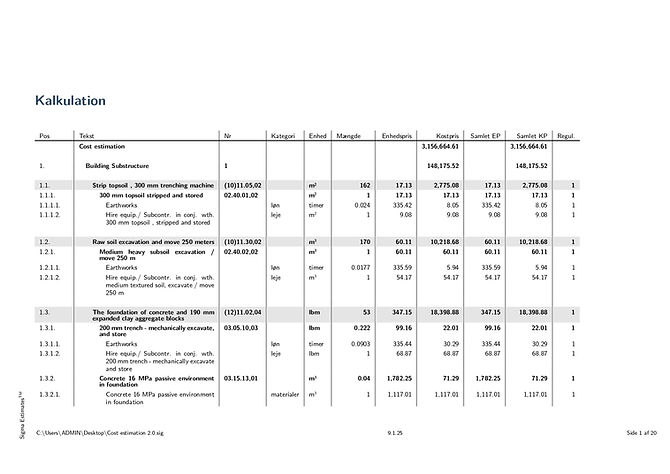

Sigma Cost Estimation

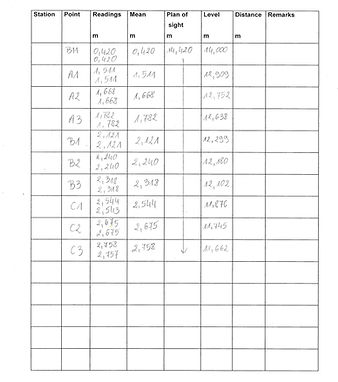

Land surveying (Amelia)_page-0003_edited

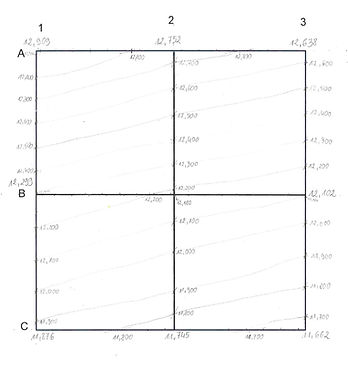

Land surveying (Amelia)_page-0004_edited
1st sem., Single-family house
Land surveying documentation
